Sale!

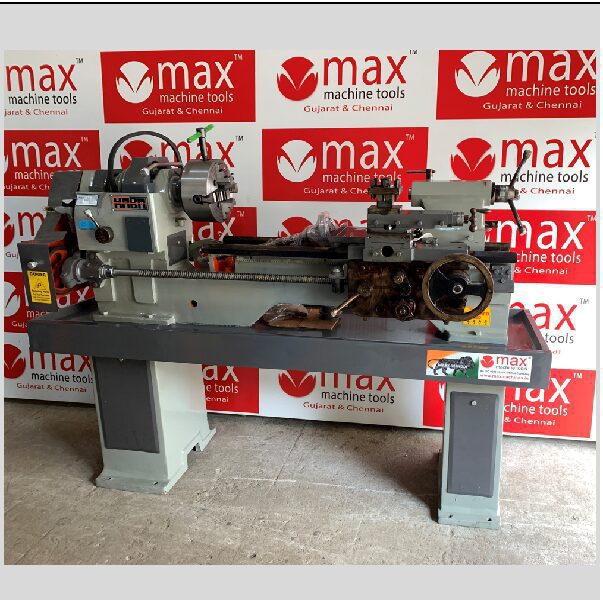

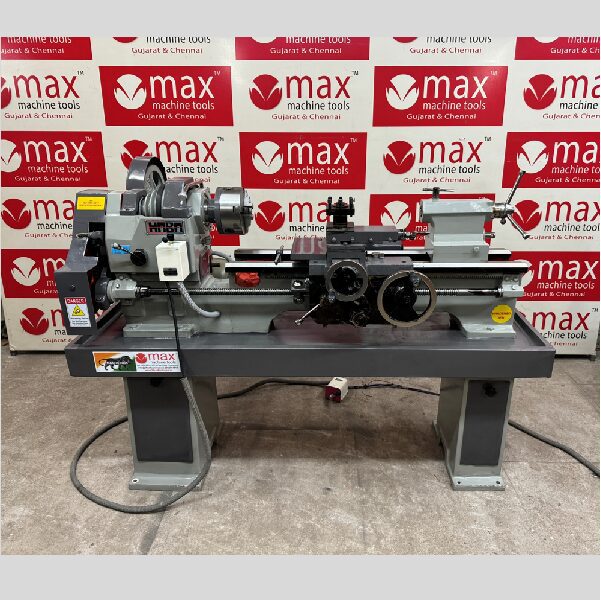

Lathe Light Duty - MODI 11

MODI / HABA / MICRONE Brand – Lathe Machines – Light Duty – Belt Driven

65,000.00 58,500.00

To download Lathe Catalogue: Click Here

To download complete Machine Tools Catalogue: Click Here

Brand Features:
MODI
: Economical and Value for Money
HABA : High Precision for Tool Room Works.
MICRONE : Heavy and Accurate, Suitable for Production and Maintenance.

Ranges Available

Length Of Bed (mm) 1370(4′-6″) 1600(5′-3″) 1825(6′)
Admit Between Center (mm) 660 890 1135



Out of stock

SKU: LMBDLD Categories: ,
Bed Ways
Type Of Bed Hardened Bed Ways
Swing Over Bed 325mm
Height Of Centre 165mm
Width Of Bed 240mm
Swing Over Cross Slide 175mm
Swing In Gap 510mm
Length Of Gap In Front Of Face Plate 115mm
Head Stock
No.of Spindle Speed 8
Spindle Speed Range 40 – 950RPM
Spindle Morse Taper MT-5
Spindle Bore 40mm
Spindle Nose Threaded
Spindle Nose Diameter 61.85mm
Spindle Threads 8 TPI
Threading
No.of British Threads 19
Range ofBritish Threads 2 to 24 TPI
No. of Metric Threads 13
Range of Metric Threads 1 to 6mm
Feeds
No. of Feeds 19
Range of Longitudinal Feeds 0.165-2mm
Range of tranverse Feeds 0.04-0.485mm
Lead Screw Diameter/ Pitch 25.4mm/4 TPI
Tail Stock
Tail Stock Spindle Diameter 38.1mm
Taper In Tail Stock Quill MT-3
Saddle
Cross Slide Travel 200mm
Compound Slide Travel 125mm
Tail Stock Sleeve Travel 120mm
Tool Post Square 88x88mm
Tool Shank Size 19mm
Others
Suitable Electrical 1HP 3PH

Standard Accessories:

  • Flame Hardened Bed Ways, Chuck Back Plate, Centre Adapter, Dead Centre 2 nos, Tool Post Spanner, Motor pulley, Thread Dial Indicator, Change Gear Set-1 (For Metric and Inch both), Chip Tray and Instruction Manual with Spare Parts Details (Optional)

Optional Accessories:

  • Face Plate, Carrier Plate, Steady Rest, Follow Rest, Taper Turning Attachment, Motorised Coolant Pump with Tank and Fittings, Rear Tool Post with extended Cross Slide, Chuck back plates, Electricals (Motor, Wirings, Switch, V-Belts and Fittings) and Norton Gear Box
