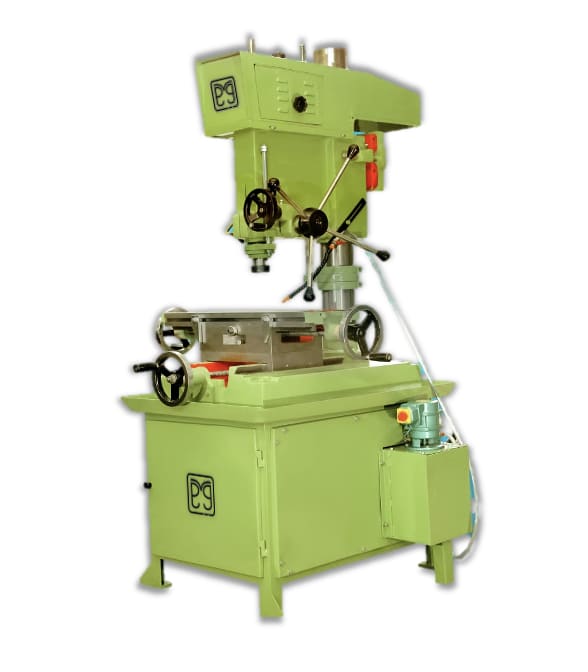

Drilling cum Milling Machine – Floor Model

Available in 2 models. (Capacity: 25mm, 40mm, 50mm)

  1. Pillar Model – Head is fixed, Job table is adjustable. This model is suitable when less coolant flow is needed. Job table is not degree adjustable.

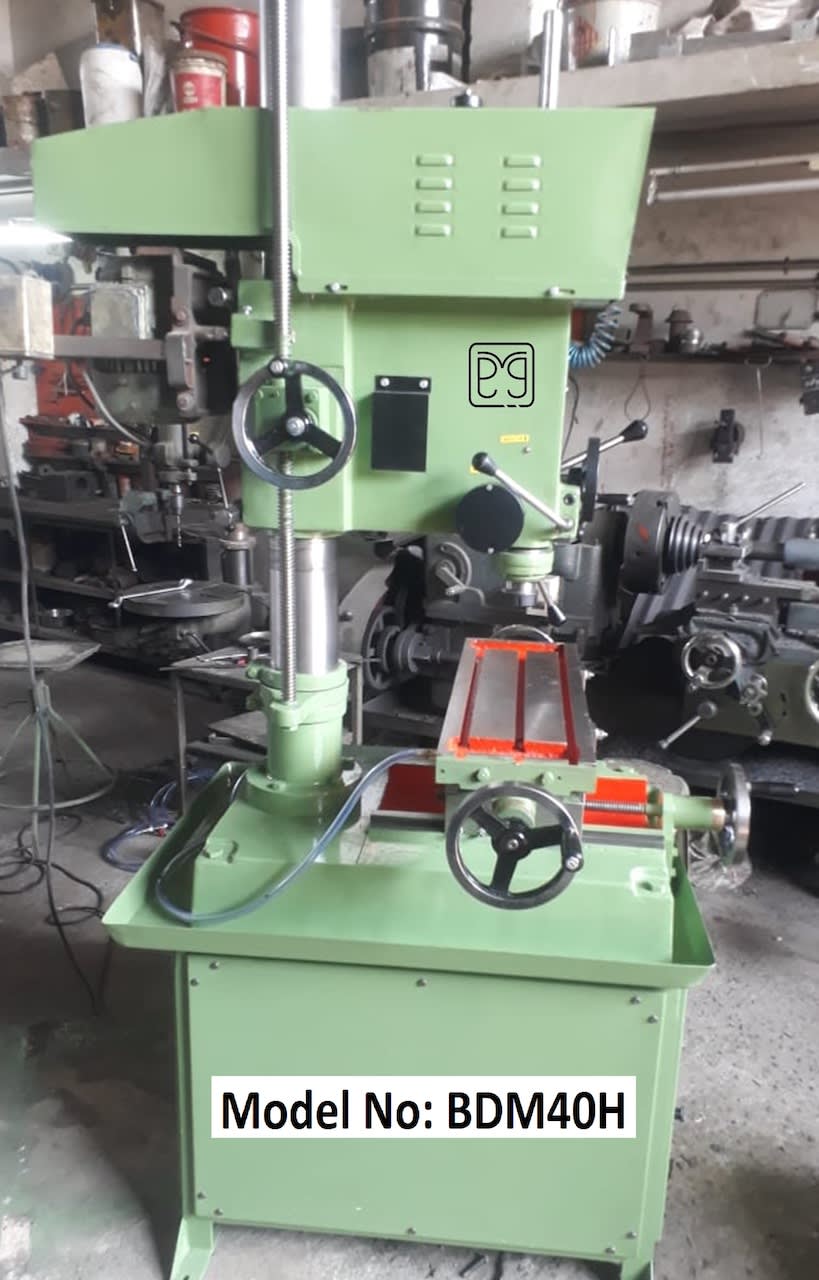

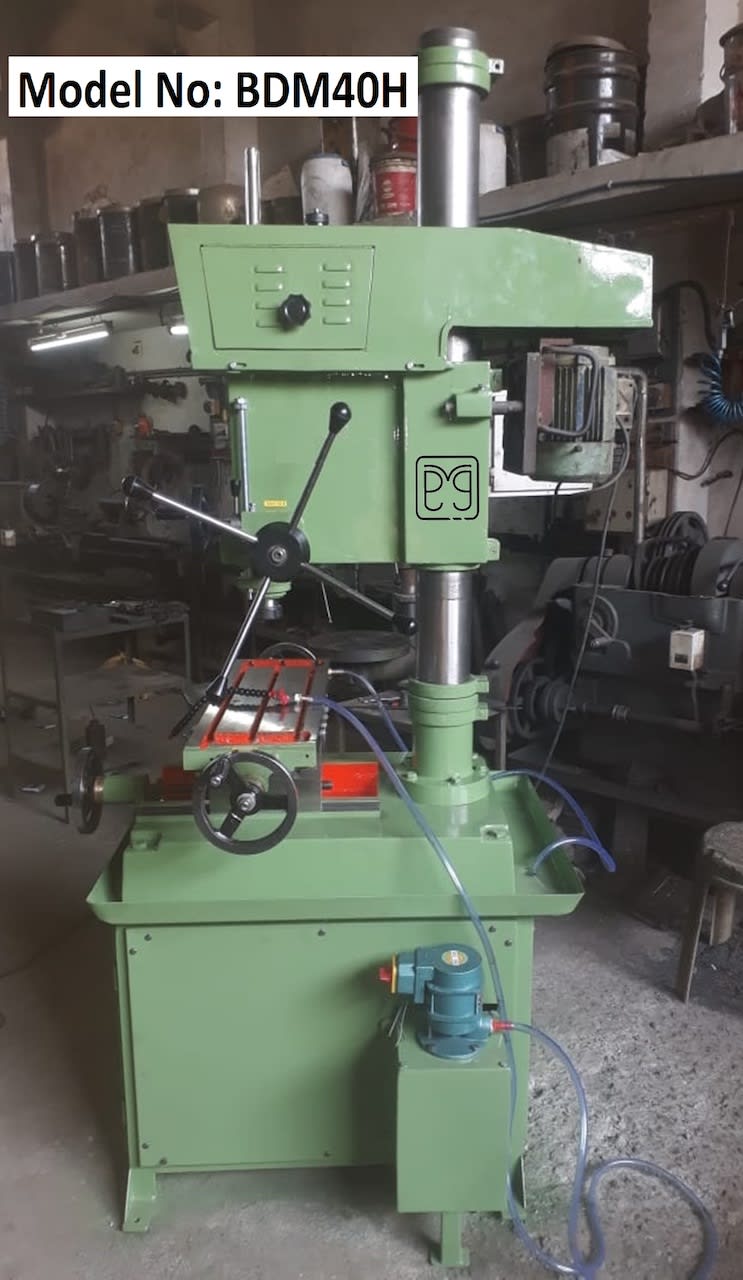

  2. Box Base Model – Head is adjustable, Job table is fixed in base. This model is suitable when continuous and good flow of coolant is required. Job table is degree adjustable.
Category:

Description

To download complete Drilling cum Tapping Machine Catalogue: Click Here

Specifications of 40mm Floor Type Machine: (Other specification on request)

Drilling Capacity – 40mm

Table Degree Movement – Yes

Head Movement – Yes (Up and Down)

Coolant System: In Built

Pillar to Centre Distance – 320mm

Spindle Travel – 250mm

Table Size – 725 x 235mm

Table Movement – 280mm

Tapper in Spindle – MT-4 with E40 Collet

Spindle Number of Speeds – 8 Motor

Req. HP – 2 HP 3 PH Weight (Approx.) – 550Kgs
