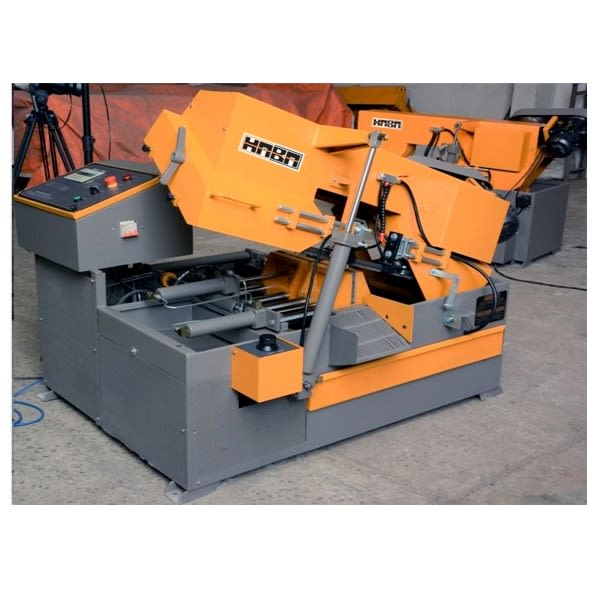

HABA Brand – Metal Cutting Bandsaw Machine – Automatic


  • Machine is fitted with ELECON Gear Box in place of ordinary Worm Gear and Worm Shaft Gearbox.
  • Induction Hardened Drive Wheels for long life.
  • Power Coated Body for avoiding quick rusting up of body.
  • Heavy Ribs in the drive Wheel




Model HMA-7
Round mm 175
Square mm 150 x 150
Drive Motor 1.5Hp (1440 RPM)
Hydraulic Motor 0.50 HP/1440 RPM
Machine Specification
Coolant Pump 0.15HP 440 Vlts
Blade Speed 20/40/60 Mtr/Mnt
Saw Blade Carbon or Bi Metal (mm) 3000 x 27 x 0.9
Floor Space L x W x H mm 1630 x 1200 x 1000
Net Weight (Appx) 475(Kg)
Packed Weight 650 (Appx)
Bar Stand (2 Pcs) 1150 x 300 x 480


  • Hydraulic Lock & Pressure Regulator
  • PLC Control with Touch Display for all Electric & Hydraulic Function
