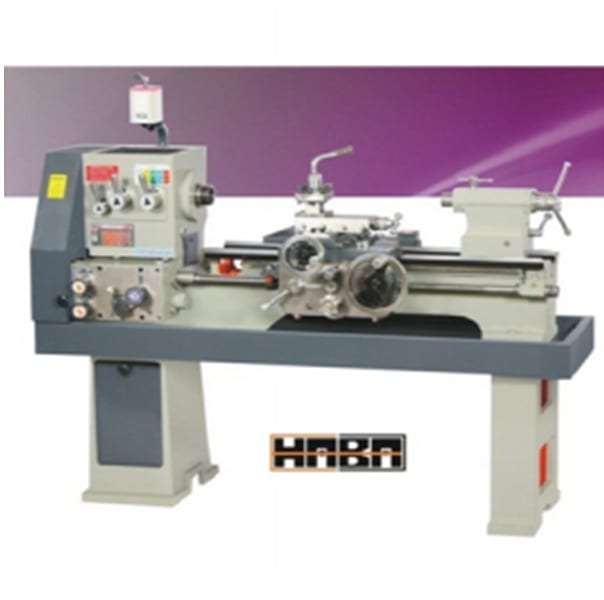

HABA Brand – Lathe Machines – Light Duty – All Geared

To download Lathe Catalogue: Click Here

To download complete Machine Tools Catalogue: Click Here

Ranges Available

Length Of Bed 1370(4′-6″) 1600(5′-3″) 1825(6′)
Admit Between Center 660 890 1200

Special Feature:

  • Head Stock Gears are Fully Induction Hardened and Teeth are Profile Grinded.
  • Norton Gear Box Gears are Hardened and Nitriding Processed.
SKU: LMAGLD Category:
BedWays
Type Of Bed Hardened Bed Ways
Swing Over Bed 325mm
Height Of Centre 165mm
Width Of Bed 240mm
Swing Over Cross Slide 175mm
Swing In Gap 500mm
Length Of Gap In Front Of Face Plate 115mm
Head Stock
No.of Spindle Speed 8
Spindle Speed Range 40-1200RPM
Taper In Spindle Sleeve MT-5
Spindle Bore 38mm
Spindle Nose Threaded/A2-4
Spindle Nose Diameter 61.85mm
Spindle Threads 8 TPI
Threading
No.of British Threads 44
Range ofBritish Threads 2 to 60 TPI
No. of Metric Threads 24
Range of Metric Threads 0.5 to 15mm
Feeds
No. of Feeds 40
Range of Longitudinal Feeds 0.066 to 2mm/ Rev.of Spindle
Range of tranverse Feeds 0.0165 to 0.50mm/ Rev. of Spindle
Lead Screw Diameter/ Pitch 25.4mm/4 TPI
Tail Stock
Tail Stock Spindle Diameter 38.1mm
Taper In Tail Stock Quill MT-3
Saddle
Cross Slide Travel 200mm
Compound Slide Travel 125mm
Tail Stock Sleeve Travel 120mm
Tool Post Square 88x88mm
Tool Shank Size 19mm
Others
Suitable Electrical 1HP 3PH



Standard Accessories:

  • Flame Hardenange Gear Set-1 (For Metric and Inch both), Chip Tray and Instruction Manual with Spare Parts Details (Optional)ed Bed Ways, Chuck Back Plate, Centre Adapter, Dead Centre 2 nos, Tool Post Spanner, Motor pulley, Thread Dial Indicator, Ch

Optional Accessories:

  • Face PlateCarrier Plate, Steady Rest, Follow Rest, Taper Turning Attachment, Motorised Coolant Pump with Tank and Fittings, Rear Tool Post with extended Cross Slide, Chuck
