Description
PRG BRAND
🇮🇳 100% Made in India
🛡️ Lifetime Supply of Spares Guaranteed
| S.No | Description | PPT6 | PPT12 | PDT20R | PDT25R | PDT40R | PDT40HR |
|---|---|---|---|---|---|---|---|
| 1 | Tapping Capacity | 6 mm | 12 mm | 12 mm | 19 mm | 25 mm | 32 mm |
| 2 | Concept | Pure Tapping | Pure Tapping | Drill + Tapping | Drill + Tapping | Drill + Tapping | Drill + Tapping |
| 3 | Drilling Capacity | 2 mm | 6 mm | 20 mm | 25 mm | 40 mm | 40 mm |
| 4 | Morse Taper | – | – | MT 3 | MT 4 | MT 4 | MT 4 |
| 5 | Spindle Travel (mm) | Table Up/Down | 75 mm | 127 | 203 | 203 | 250 |
| 6 | Table Size (mm) | 150 x 150 | 190 x 220 | 260 x 260 | 340 x 340 | 411 x 411 | 411 x 411 |
| 7 | Pillar To Centre (mm) | 80 | 140 | 200 | 235 | 381 | 320 |
| 8 | Pillar Dia. (mm) | 47 | 74 | 74 | 87 | 106 | 121 |
| 9 | No of Speeds | 3 | 3 | 8 | 8 | 8 | 8 |
| 10 | HP Required | 0.5 | 1 | 1 | 1.5 | 2 | 2 |
| 11 | Fine Feed | No | No | Yes | Yes | Yes | Yes |
| 12 | Back Gear | No | No | Yes | Yes | Yes | Yes |
| 13 | Single Pillar | No | No | No | No | Yes | Yes |
| 14 | Weight in Kgs (Approx) | 50 | 120 | 135 | 235 | 310 | 365 |
Important Notes:
# Optional – For heavy work, or specialised application, we can give E40 collet / Quick change collet spindle also.
Standard Accessories: Motor Pulley, Handles, Foot Switch.
Soft Accessories: Instruction Manual, Technical Guidance, Maintenance Manual, Educational Videos (Subject to availability).
Optional Accessories: Electric Motor, Key Type Drill Chuck, Keyless Drill Chuck, Arbour, Sleeves, Coolant Pump with tank and spout, Drill Vice, Motor Belt, Machine Lamp, Milling Vice, Safety Guard.

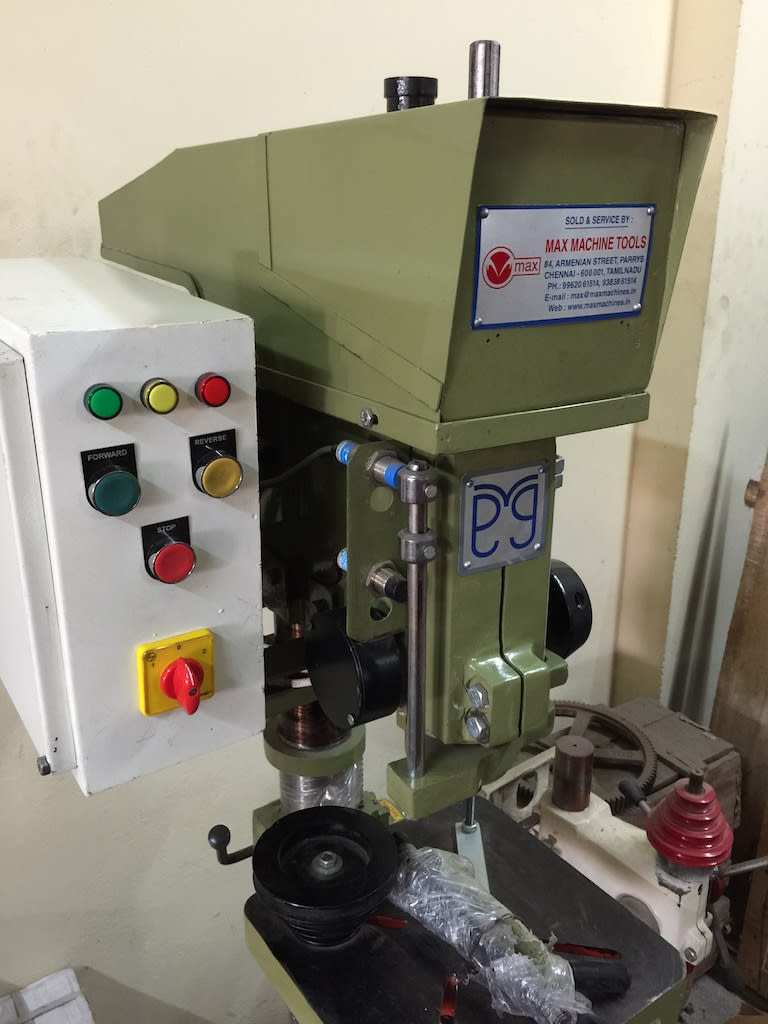

⭐ For Drill + Tapping Machine: Panel board is 100% Made in India. Panel board comes with 3 ph indicator lamp and also with cooling fan.
