Straight Coupler MO11 Series

58.00261.00

Download MO series Drawings and Specifications: HERE

Download Tightening Torques details: HERE

Download complete product range catalogue: HERE

100% Metal Fittings – Made in Italy – Free Shipping

Prices are excluding GST. Kindly mention your GST Number to get Input Credit. GST @ 18% will be added at check out.

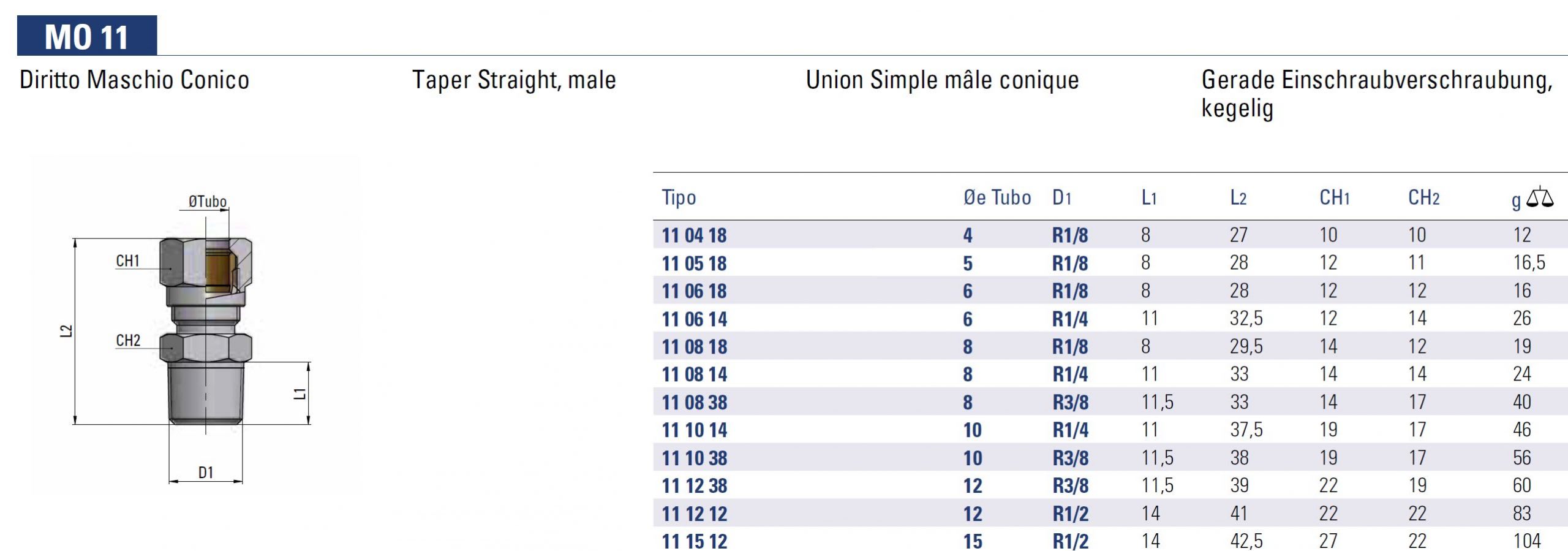

Refer Technical Chart Photo to understand the model before Placing order.

Clear

Description

Brass Nickel-Plated Compression Fittings

The compression fittings of the MO line ensure the pneumatic/hydraulic tightness of the tubing by compression of an olive ring on the tubing. The olive seats, the olives and the nuts are all manufactured according to ISO8434/DIN 2353 norm. All MO fittings are electro-less nickel plated.

1 > Body: Brass UNI EN 12164 CW614N – UNI EN 12165 CW617N Nickel Plated
2 > Nut: Brass UNI EN 12164 CW614N Nickel Plated
3 > Olive: Brass UNI EN 12164 CW614N

Recommended tubings: Copper and alluminium tubings. PA11 and PA6 tubings are to be used with our MO 23 reinforcement part.

Acceptable Tolerances on the tubings: +/– 0,07 mm up to Ø 10 mm +/– 0,1 mm up to Ø 15 mm

Application fields: Pneumatic, hydraulic and oleodynamic circuits.







Additional information

Size

MO11 06 18, MO11 06 14, MO11 08 18, MO11 08 14
