Union Elbow MA28 Series

66.00261.00

Download MA series Drawings and Specifications: HERE

Download Tightening Torques details: HERE

Download complete product range catalogue: HERE

100% Metal Fittings – Made in Italy – Free Shipping

Prices are excluding GST. Kindly mention your GST Number to get Input Credit. GST @ 18% will be added at check out.

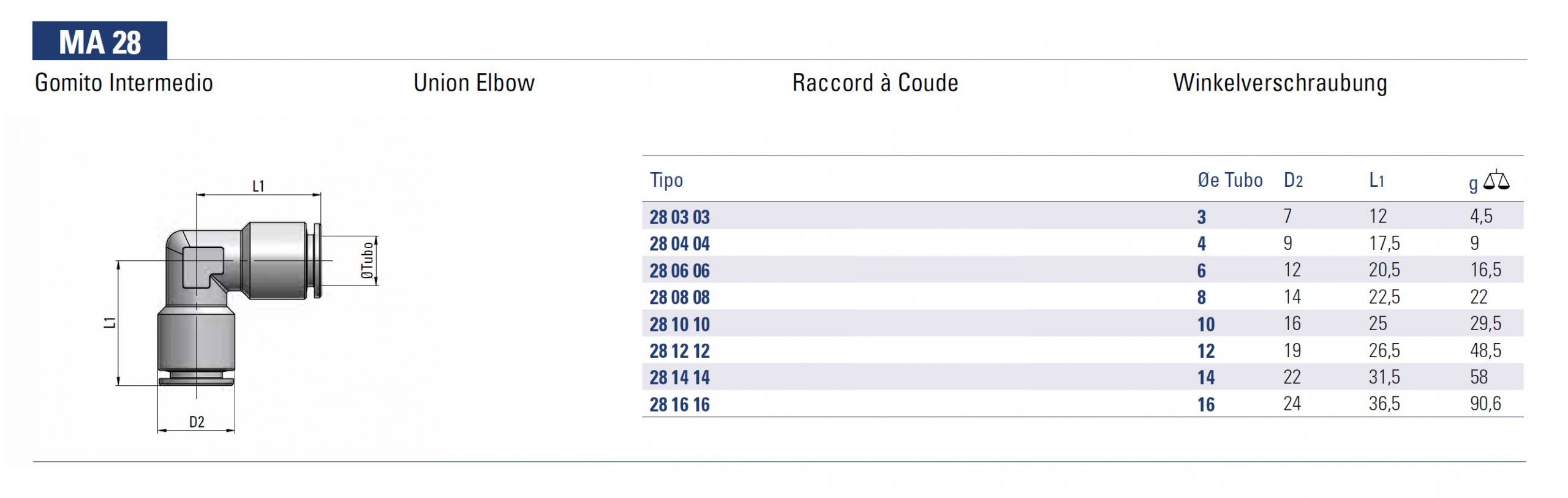

Refer Technical Chart Photo to understand the model before Placing order.

Clear

Description

Automatic fittings

The MA series automatic fittings made entirely of brass are the ideal product for making quick connections in the most varied industrial applications; robust and compact, the MA fittings guarantee excellent performance over time. All fittings of the MA series are subjected to electrolytic Nickel Plating surface treatment.

1-2> Body and ring Extractor: Brass UNI EN 12164 CW614N Nickel plated / Brass UNI EN 12165 CW617N Nickel plated
3> Retaining ring: Acetal resin (POM) 4> Crimping pliers: AISI 301
5
 stainless steel > Collet ring: Acetal resin (POM) 6> Gaskets: NBR
AVAILABLE VERSIONS:

Inch pipe and NPT thread:
 PN series (Go to PN series)
FPM gaskets: AV series (Go to AV series)
Pretfloned conical threads: item code + PTFE

TECHNICAL SPECIFICATIONS

Recommended connection pipes: PA11, PA12, PA6, Polyethylene PE, PU Polyurethane (98 Shore A).
Acceptable tolerances on the tubes: +/– 0.07 mm up to Ø 10 mm and +/– 0.1 mm from Ø 12 to Ø 16 mm.
Fields of application: Pneumatic systems.

Additional information

Size

MA28 04 04, MA28 06 06, MA28 08 08, MA28 10 10, MA28 12 12
