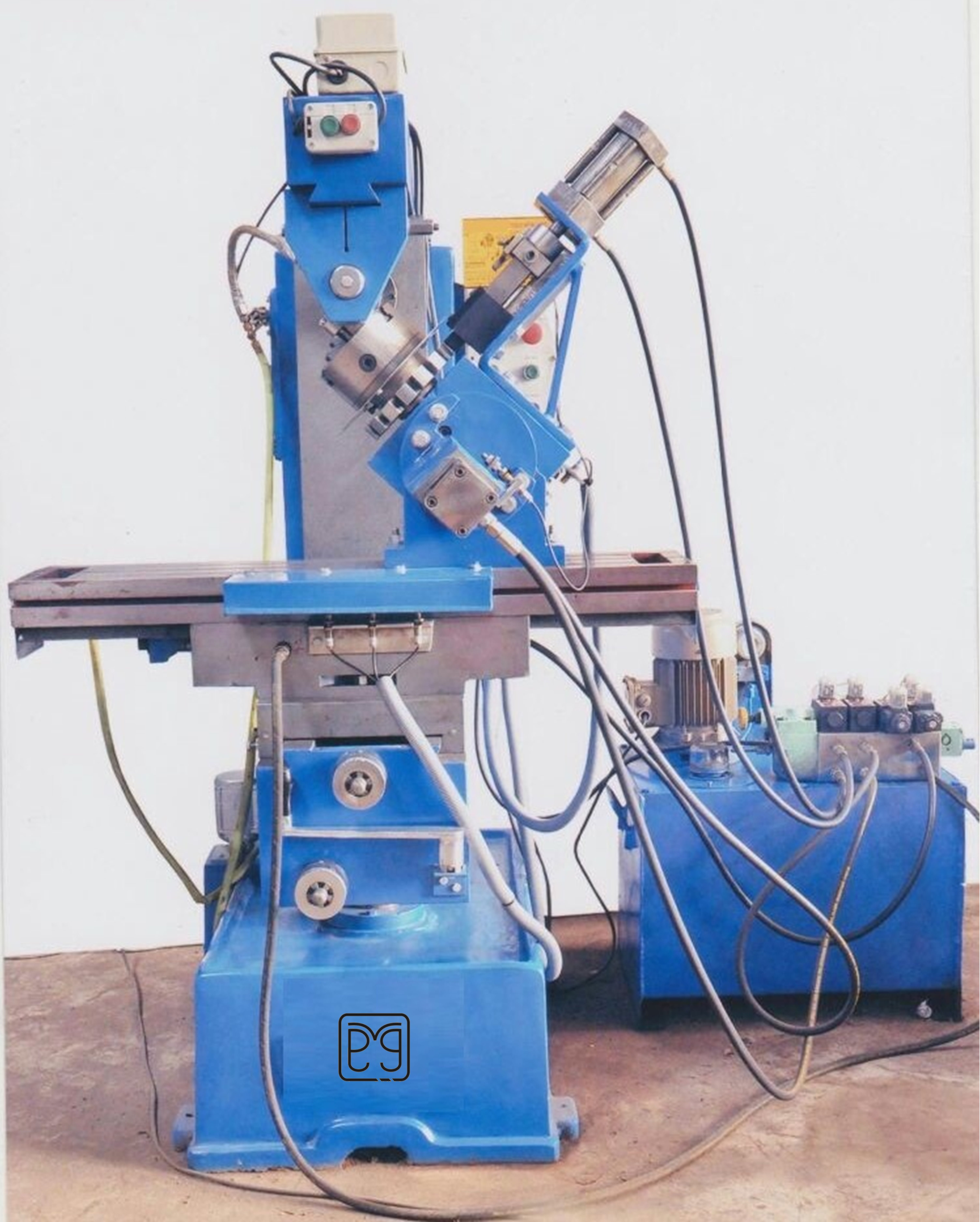

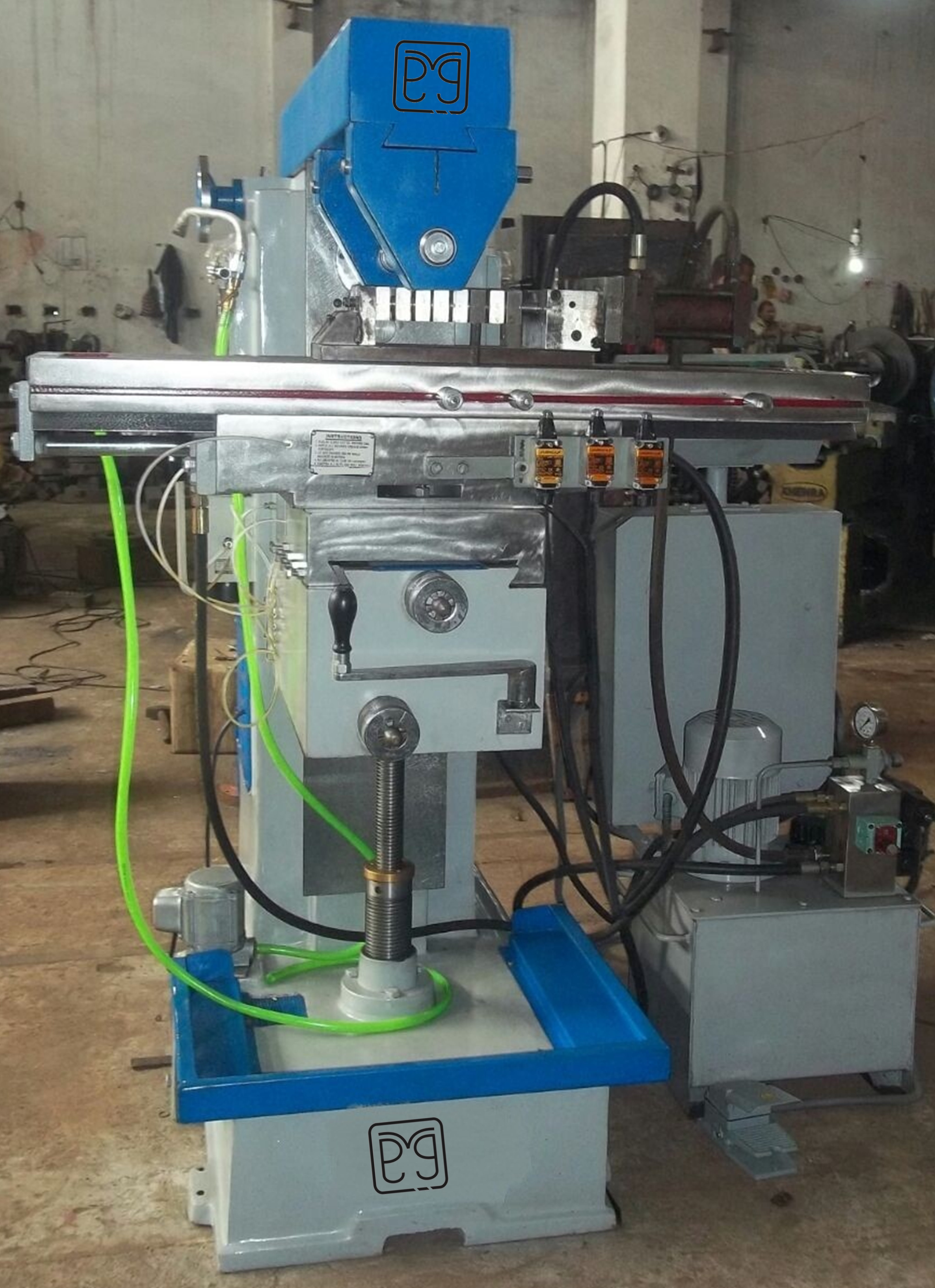

Description
Technical Specification
|
Model |
PUM | 890 | PUM | 1020 | PUM | 1140 | PUM | 1270 | PUM | 1400 | PUM | 1525 | PUM | 1650 |
| Table | Inche MM | Inche MM | Inche MM | Inche MM | Inche MM | Inche MM | Inche MM | |||||||
| Working Surface | 8 x35 200 x890 | 9 x40 230 x1020 | 10 x45 255 x1140 | 11 x50 280 x1270 | 12 x55 305 x1400 | 13 x60 330 x1525 | 14 x65 360 x1650 | |||||||
| Sewivel | 45…… | 45…… | 45…… | 45…… | 45…… | 45…… | 45…… | |||||||
| T.Slot Nos./Size | 3-1/23-12 | 3-1/23-12 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | |||||||
| Distance between T.Slot | 3-1/23-12 | 3-1/23-12 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | 3-5/83-16 | |||||||
| Spindle | ||||||||||||||
| No.Of Spindle Speeds | 6…… | 6…… | 9…… | 9…… | 9…… | 12…… | 12…… | |||||||
| Range of Spindle Speeds | 50to 750 | 50to 750 | 40to 750 | 40to 750 | 40to 750 | 40t0 1100 | 40to 1100 | |||||||
| Spindle Taper | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | |||||||
| Arbour Diameter | 1 25.4 | 1 25.4 | 1 25.4 | 1 25.4 | 1 25.4 | 1 25.4 | 1 25.4 | |||||||
| Feeds | ||||||||||||||
| Longitudinal (Manual/Auto) | 18 460 | 21 535 | 24 610 | 27 710 | 32 840 | 38 965 | 43 1090 | |||||||
| Cross (in all geared only) | 4.5115 | 6128 | 7152 | 9204 | 12280 | 14355 | 431090 | |||||||
| Vertical (in all geared only) | 10 280 | 12 305 | 14 330 | 17 430 | 20 510 | 25 636 | 29 736 | |||||||
| No of Auto Feeds | 2…… | 6…… | 6…… | 9…… | 9…… | 3…… | – | |||||||
| Feeds Range P/M Longi. | .1mm to.3mm/Rec | 10mm to 120mm | 10mm to 120mm | 10mm to 120mm | 10mm to 120mm | 10mm to 120mm | ………… | |||||||
| No. Of Auto feeds in all Geared | ………… | ………… | ………… | ………… | 6…… | 6…… | 6…… | |||||||
| Longitudinal Feeds / Min | ………… | ………… | ………… | ………… | 1/2x612x152 | 1/2x612x152 | 1/2x612x152 | |||||||
| Cross Feeds / Min. | ………… | ………… | ………… | ………… | 1/2x612x152 | 1/2x612x152 | 1/2x612x152 | |||||||
| Vertical Feeds / Min | ………… | ………… | ………… | ………… | 1/16×1.5 1.5×38 | 1/16×1.5 1.5×38 | 1/16×1.5 1.5×38 | |||||||
| Rapid (in all geared only) | ||||||||||||||
| No.Of Rapid Feeds | ………… | ………… | ………… | ………… | 1…… | 1…… | 1…… | |||||||
| Longitudinal Rapid/Min | ………… | ………… | ………… | ………… | 35 890 | 35 890 | 35 890 | |||||||
| Cross Rapid/Min | ………… | ………… | ………… | ………… | 35 890 | 35 890 | 35 890 | |||||||
| Vertical Rapid / Min | ………… | ………… | ………… | ………… | 7178 | 7178 | 7178 | |||||||
| Electrical | ||||||||||||||
| Main Motor | 1 HP -1440 RPM | 1 HP -1440 RPM | 1 HP -1440 RPM | 2 HP -1440 RPM | 3 HP -1440 RPM | 3 HP -1440 RPM | 5 HP -1440 RPM | |||||||
| Feed Motor | 1 HP -1440 RPM | 1 HP -1440 RPM | 2 HP -1440 RPM | 2 HP -1440 RPM | 1 HP -1440 RPM | ………… | ||||||||
| Feed Motor (in all geared only) | ………… | ………… | ………… | 2 HP -960 RPM | 2 HP -960 RPM | 2 HP -960 RPM | 3 HP -960 RPM | |||||||
| Coolant Pump | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | |||||||
| Machine Weight | 650 Kg | 850 Kg | 1150 Kg | 1450 Kg | 2200 Kg | 3200 Kg | 3800 Kg | |||||||
