Male Elbow MC16 Series


Download MC series Drawings and Specifications: HERE

Download Tightening Torques details: HERE

Download complete product range catalogue: HERE

100% Metal Fittings – Made in Italy – Free Shipping

Prices are excluding GST. Kindly mention your GST Number to get Input Credit. GST @ 18% will be added at check out.

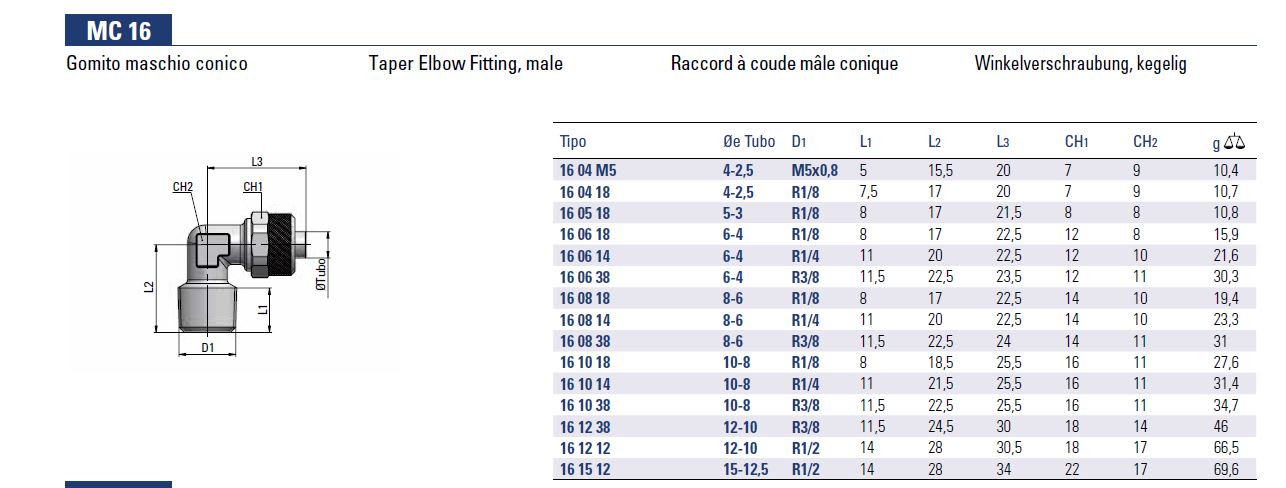

Refer Technical Chart Photo to understand the model before Placing order.


Brass Nickel-Plated Push-on Fittings

The Push-on Fittings of the MC line are provided with a cone to ensure the perfect tightness once the tubing is assembled and the nut tightened. All MC fittings are electro-less nickel plated.

1 > Fitting Body: Brass UNI EN 12164 CW614N – UNI EN 12165 CW617N Nickel Plated
2 > Nut: Brass UNI EN 12164 CW614N Nickel Plated
3 > Seals: NBR

Recommended tubings: PA11, PA12, Polyethylene PE, Polyurethane PU

Acceptable Tolerances on the tubings: +/– 0,07 mm up to Ø 10 mm +/– 0,1 mm up to Ø 15 mm

Application fields: Pneumatic circuits.



Additional information


MC16 04 18, MC16 06 18, MC16 06 14, MC16 08 18, MC16 08 14, MC16 10 18
