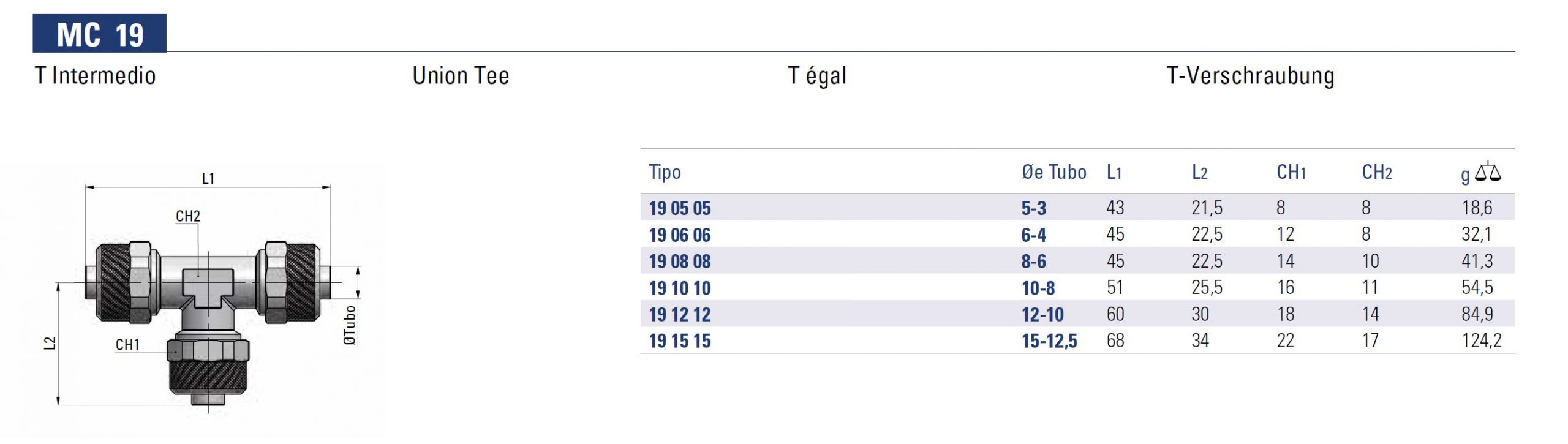

Brass Nickel-Plated Push-on Fittings
The Push-on Fittings of the MC line are provided with a cone to ensure the perfect tightness once the tubing is assembled and the nut tightened. All MC fittings are electro-less nickel plated.
1 > Fitting Body: Brass UNI EN 12164 CW614N – UNI EN 12165 CW617N Nickel Plated
2 > Nut: Brass UNI EN 12164 CW614N Nickel Plated
3 > Seals: NBR
Recommended tubings: PA11, PA12, Polyethylene PE, Polyurethane PU
Acceptable Tolerances on the tubings: +/– 0,07 mm up to Ø 10 mm +/– 0,1 mm up to Ø 15 mm
Application fields: Pneumatic circuits.
