Description
PRG BRAND
🇮🇳 100% Made in India
🛡️ Lifetime Supply of Spares Guaranteed
| S.No | Description | PDM25 | PDM40H | FDM40H |
|---|---|---|---|---|
| 1 | Drilling Capacity in MS | 25 mm | 40 mm | 40 mm |
| 2 | Drilling Capacity in CI | 50 mm | 100 mm | 100 mm |
| 3 | Taper in Spindle | MT-4 | MT-4 with E40 Collet | MT-4 with E40 Collet |
| 4 | Spindle Travel | 150 mm | 250 mm | 250 mm |
| 5 | Pillar to Centre Distance | 255 mm | 320 mm | 320 mm |
| 6 | Table Size | 580 x 200 mm | 725 x 235 mm | 725 x 235 mm |
| 7 | Table Movement | 250 mm | 280 mm | 280 mm |
| 8 | Table Degree Movement | Fixed | Fixed | Yes |
| 9 | Pillar Diameter | 90 mm | 120 mm | 120 mm |
| 10 | Height Adjustment | Table Movement | Table Movement | Head Movement |
| 11 | Coolant System | Optional | Optional | Integrated |
| 12 | Spindle Design | 1 Directional Load | 3 Directional Load | 3 Directional Load |
| 13 | No. of Speeds | 8 | 8 | 8 |
| 14 | Motor Req. – HP / PH | 1 HP / 3 PH | 2 HP / 3 PH | 2 HP / 3 PH |
| 15 | Weight in Kgs (Approx) | 250 | 550 | 550 |
Important Notes:
Standard Accessories: Motor Pulley, Handles.
Soft Accessories: Instruction Manual, Technical Guidance, Maintenance Manual, Educational Videos (Subject to availability).
Optional Accessories: Electric Motor, Drill Chuck, Keyless Drill Chuck, E40 Collet, Drill Bit, End Mill, R/F Switch, Starter, Coolant Pump, Milling Vice, Drill Vice, Motor Belt, Coolant Oil, Work Lamp, DRO (Digital Readout), Tapping Panel Board.
⭐ Model Selection Guide (Special Explanation):

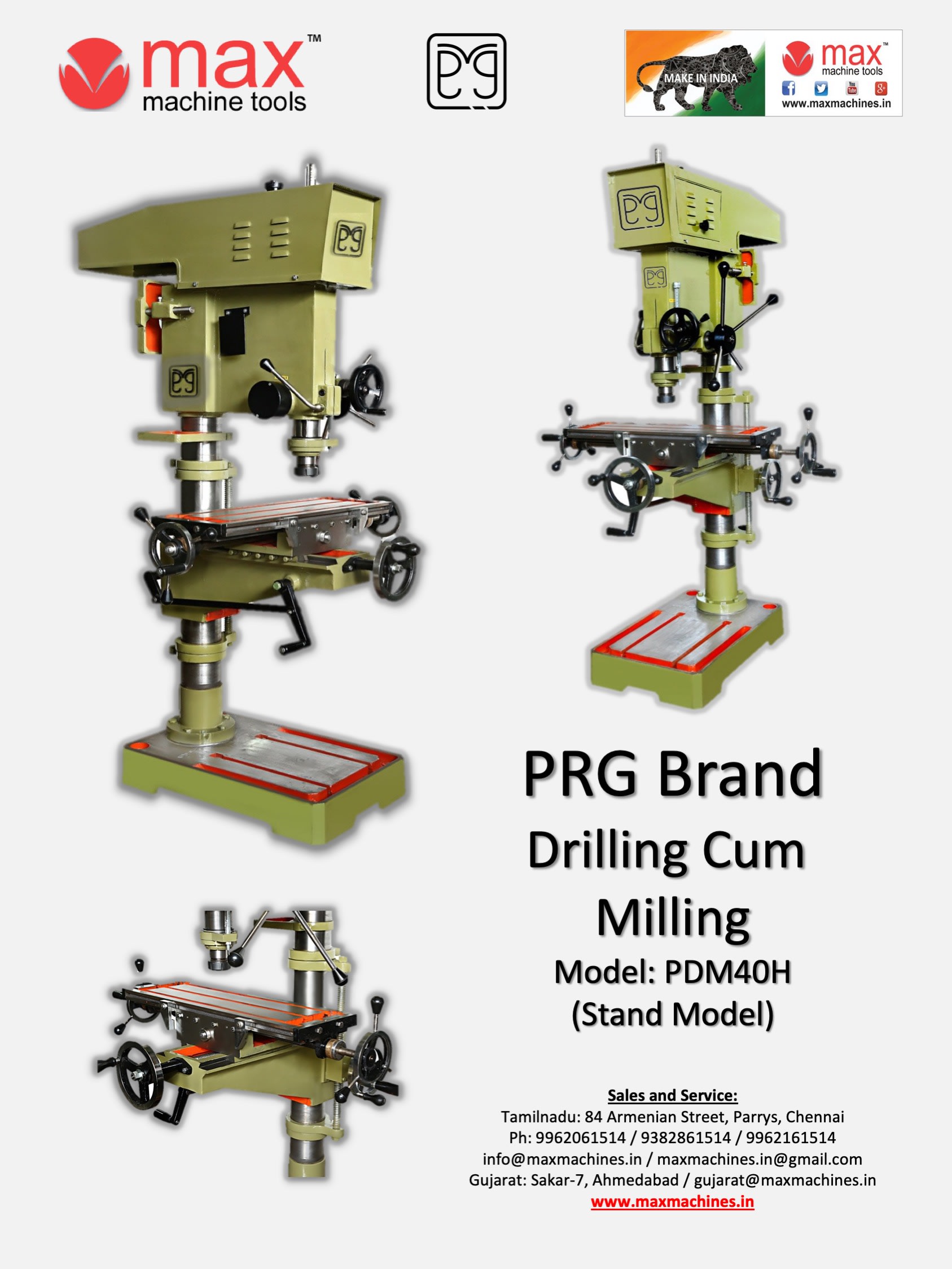

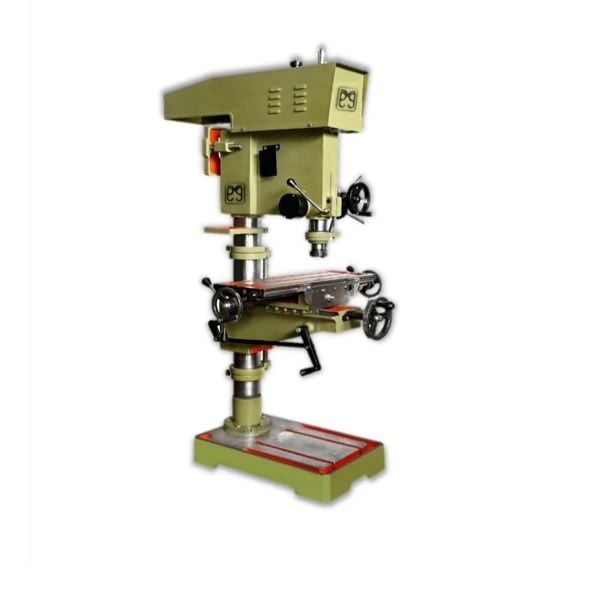

- PDM40H (Pillar Model): Head is fixed, Job table is adjustable. This model is suitable when less coolant flow is needed. Job table is not degree adjustable.
- FDM40H (Box Base Model): Head is adjustable, Job table is fixed in base. This model is suitable when continuous and good flow of coolant is required. Job table is degree adjustable.
- PDM25 (Pillar Model): Suitable for multiple drill applications where the job needs to be moved Front-Back and Left-Right. Not suggested for continuous milling work.
