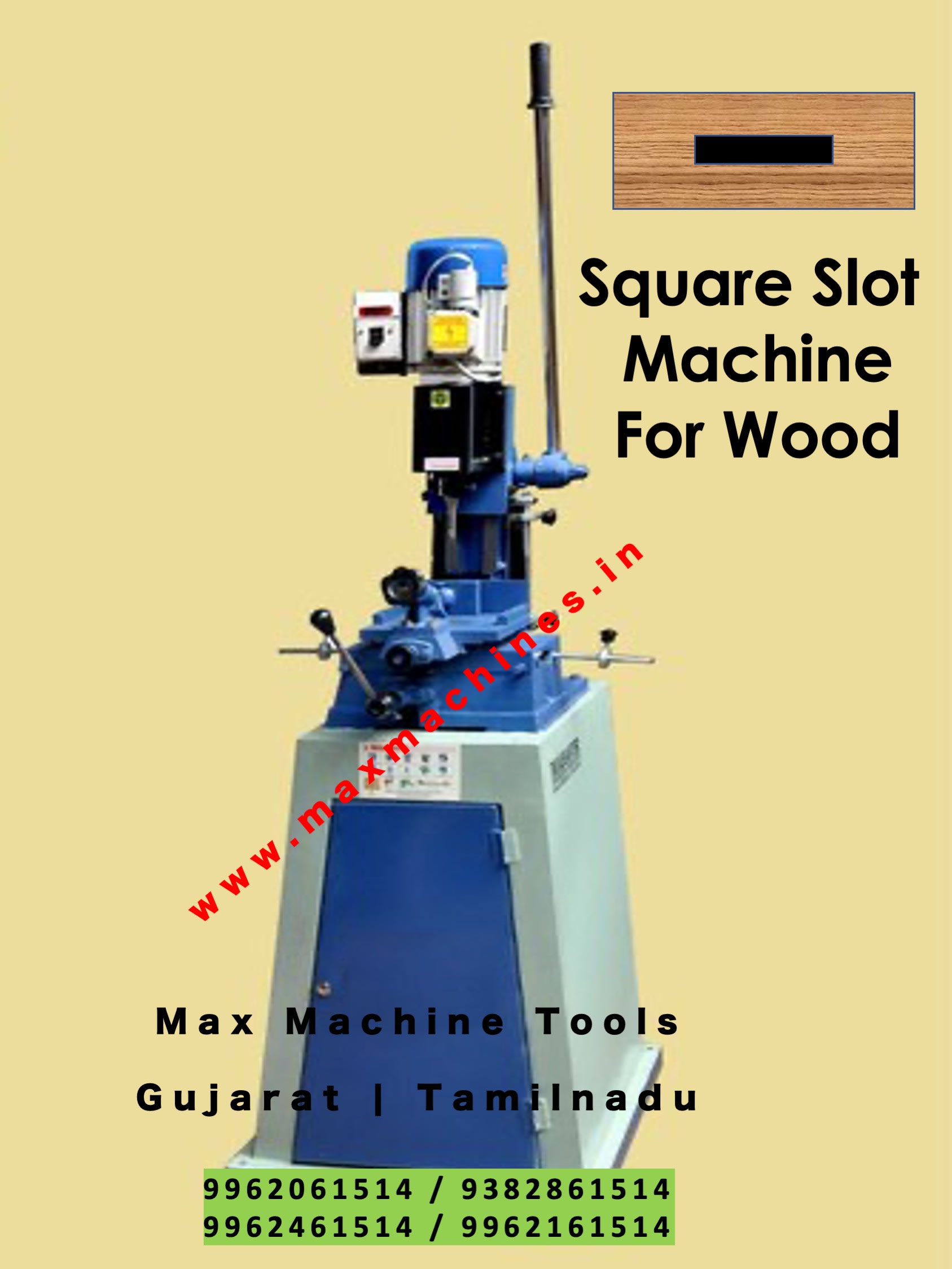

Square Holes Machines for Wood

This machine is suitable for making square holes in wood and also rectangular slot in wood. This is very fast and time and labour saving machine. Also it runs on single phase so it can be used at any site work also.

Description



Square hole machine for wood Specifications:

Table size – 200 x 165

Max Chisel Capacity – 6mm to 16mm ( 1 Chisel will be provided with machine)

Longitudinal movement of table – 230mm

Max. Depth of cut – 90mm

Max height of workpiece on table – 100mm

Motor supplied – 1HP1PH – 2800 RPM
