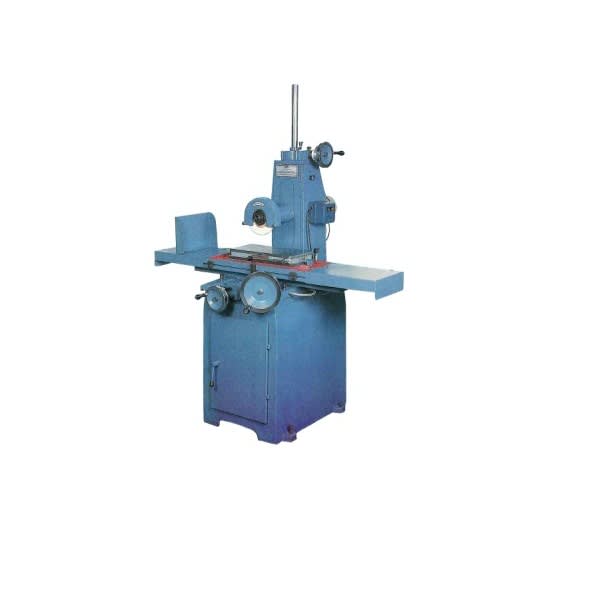

Surface Grinder


Special Features

  • Vibration Free and Noiseless Working
  • Precised Engineering and simple easily accessible control mean time saving and Accurate Operation
  • The Grinding accuracy on the machine is guaranteed and controls of the machine are within the easy reach of the operator


Technical Specification

Model BSG-175 BSG-225 BSG-250 BSG-300
Working Surface of the Table (mm) 175×350 225×450 250×500 300×600
Magn. Chuck size 150×300 200×450 200×500 250×300
Max. height from table to Grind.Wheel 250mm 275mm 300mm 300mm
Vertical Feed Gradu. 0.01 0.01 0.002 0.002
Cross Feed Gradu. 0.05 0.05 0.05 0.05
Size of Grinding Wheel 175x13x31.75 200x13x31.75 200x13x31.75 2..x13x31.75
Spindle Speed RPM 2800 2800 2800 2800
Motor HP 0.75HP 1HP 2HP 2HP
