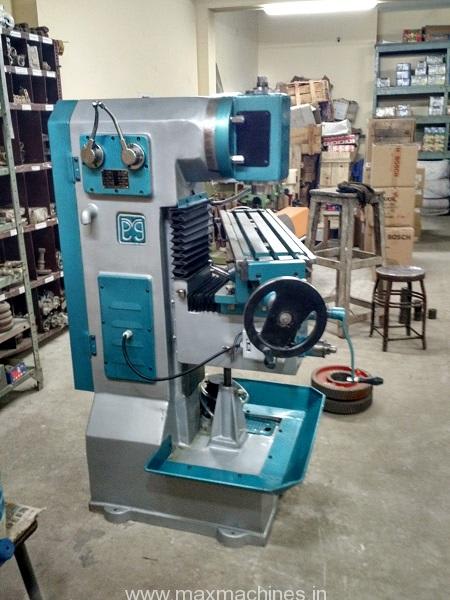

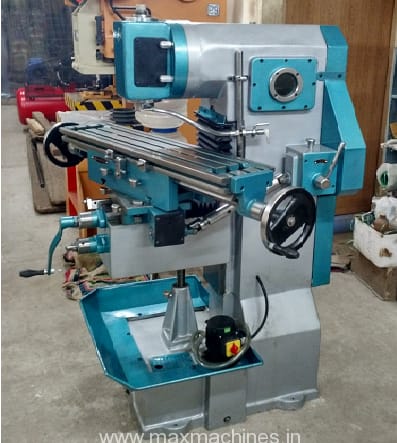

Vertical Milling Machine



To download Milling Catalogue: Click Here

Standard Accessories

  • Diving Head
  • Vertical Attachment
  • Rotary Table
  • Rack Cutting Attachment
  • Slotted Attachment
  • Cooling Arcs
  • Machine Lamp
  • Extra Abrour
  • Control Panel
  • Vertical Parking Bracket
Categories: ,

Description

Technical Specification

Model PVM 890 PVM 1020 PVM 1140 PVM 1270 PVM 1400 PVM 1525 PVM 1650
Table Inch MM Inch MM Inch MM Inch MM Inch MM Inch MM Inch MM
Working Surface 8 x35 200 x890 9 x40 230 x1020 10 x45 255 x1140 11 x50 280 x1270 12 x55 305 x1400 13 x60 330 x1525 14 x65 360 x1650
Sewivel 45 45 45 45 45 45 45
T.Slot Nos./Size 3-1/23-12 3-1/23-12 3-5/83-16 3-5/83-16 3-5/83-16 3-5/83-16 3-5/83-16
Distance between T.Slot 3-1/23-12 3-1/23-12 3-5/83-16 3-5/83-16 3-5/83-16 3-5/83-16 3-5/83-16
Spindle
No.Of Spindle Speeds 6 6 9 9 9 12 12
Range of Spindle Speeds 50to 750 50to 750 40to 750 40to 750 40to 750 40t0 1100 40to 1100
Spindle Taper ISO- 40 ISO- 40 ISO- 40 ISO- 40 ISO- 40 ISO- 40 ISO- 40
Arbour Diameter 125.4 1 25.4 125.4 125.4 125.4 125.4 125.4
Feeds
Longitudinal (Manual/Auto) 18 460 21 535 24 610 27 710 32 840 38 965 43 1090
Cross (in all geared only) 4.5 115 6 128 7 152 9 204 12 280 14 355 43 1090
Vertical (in all geared only) 10 280 12 305 14 330 17 430 20 510 25 636 29 736
No of Auto Feeds 2 6 6 9 9 3 …………
Feeds Range P/M Longi. .1mm to.3mm/Rec 10mm to 120mm 10mm to 120mm 10mm to 120mm 10mm to 120mm 10mm to 120mm …………
No. Of Auto feeds in all Geared ………… ………… ………… ………… 6 6 6
Longitudinal Feeds / Min ………… ………… ………… ………… 1/2x612x152 1/2x612x152 1/2x612x152
Cross Feeds / Min. ………… ………… ………… ………… 1/2x612x152 1/2x612x152 1/2x612x152
Vertical Feeds / Min ………… ………… ………… ………… 1/16×1.5 1.5×38 1/16×1.5 1.5×38 1/16×1.5 1.5×38
Rapid (in all geared only)
No.Of Rapid Feeds ………… ………… ………… ………… 1 1 1
Longitudinal Rapid/Min ………… ………… ………… ………… 35890 35890 35890
Cross Rapid/Min ………… ………… ………… ………… 35890 35890 35890
Vertical Rapid / Min ………… ………… ………… ………… 7178 7178 7178
Electrical
Main Motor 1 HP -1440 RPM 1 HP -1440 RPM 1 HP -1440 RPM 2 HP -1440 RPM 3 HP -1440 RPM 3 HP -1440 RPM 5 HP -1440 RPM
Feed Motor 1 HP -1440 RPM 1 HP -1440 RPM 2 HP -1440 RPM 2 HP -1440 RPM 1 HP -1440 RPM …………
Feed Motor (in all geared only) ………… ………… ………… 2 HP -960 RPM 2 HP -960 RPM 2 HP -960 RPM 3 HP -960 RPM
Coolant Pump 0.1 HP 0.1 HP 0.1 HP 0.1 HP 0.1 HP 0.1 HP 0.1 HP
Machine Weight 650 Kg 850 Kg 1150 Kg 1450 Kg 2200 Kg 3200 Kg 3800 Kg
